XTUBE tubes
Suspended cylindrical tubes in three diameters —60, 80 and 120 mm— in lengths from 570 to 2250 mm and 12 to 72 W.
- 60 · 80 · 120 mm
- Diameters
- 12 – 72 W
- Power range
- 570 – 2250 mm
- Lengths
- 14
- Codes in the series
The models
3 diameters, all in view. The catalogue lists no recessed version of this series.
In view

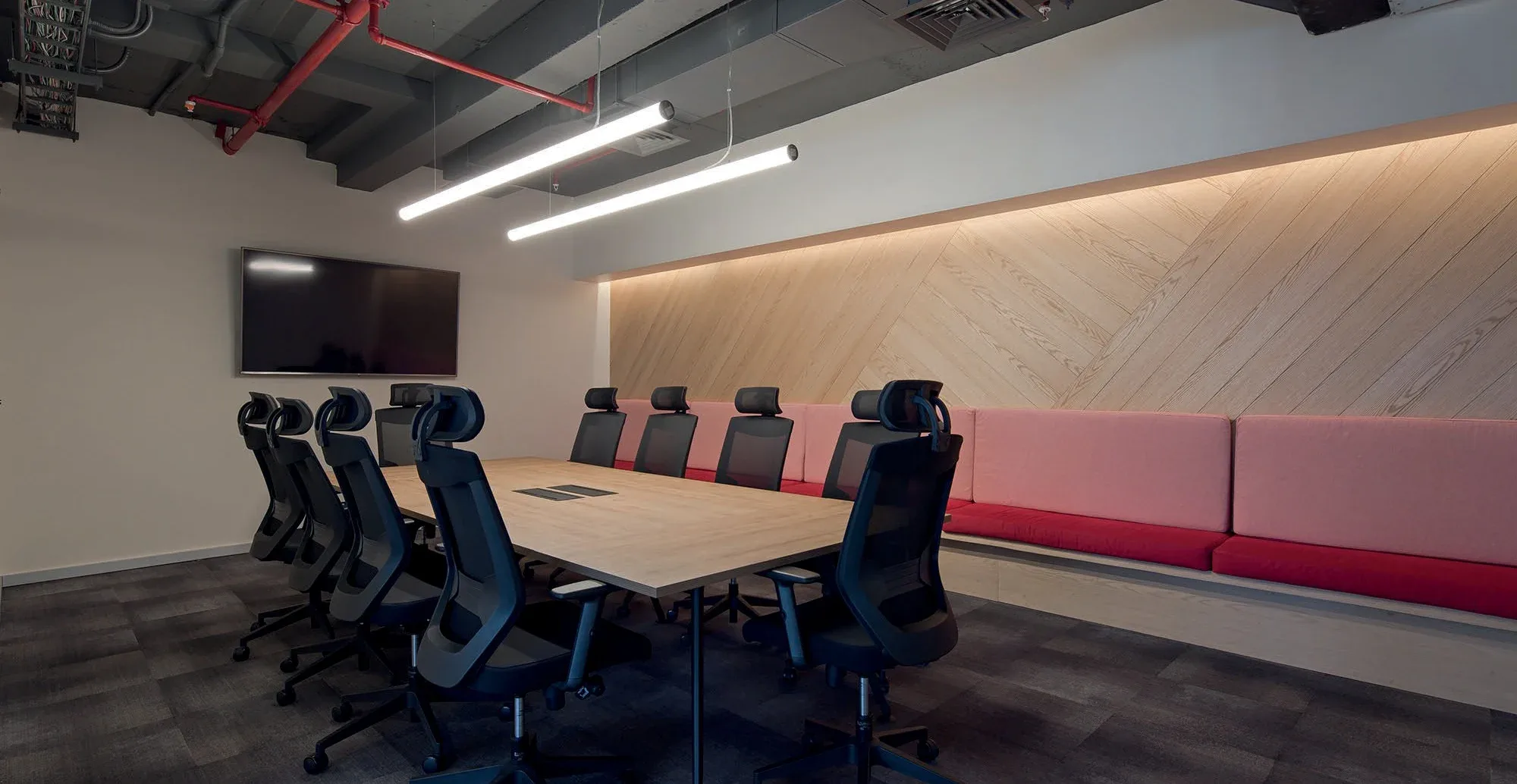

In view: on the slab or hung on wire, with the body as part of the space.
14 codes| Model | Dimensions | Optic | Power | Codes |
|---|---|---|---|---|
| T60 | 570 – 2250 mm | Not declared | 12 – 48 W | 4 |
| T80 | 570 – 2250 mm | Not declared | 18 – 72 W | 5 |
| T120 | 570 – 2250 mm | Not declared | 18 – 72 W | 5 |
Colour of the light
14 of the 14 codes in the series declare a colour temperature in the catalogue.
- 3000 K Warm
- 4000 K Neutral
- 5000 K Cool neutral
- 6000 K Cool
- Tunable White (Color Changing) Tunable on site
Dimming
Most of the series is quoted in ON-OFF, DALI and 0-10 V. It is defined at order time: the driver is fitted at the factory and cannot be swapped on site.
- ON/OFF
- No dimming. The base method on every code.
- DALI
- Addressable per luminaire, scenes and sensors.
- 0-10 V / 1-10 V
- Analogue, with separate control wiring.
- Color Changing
- Colour temperature shift, on 10 codes in the series.
Technical specifications
Values for the complete series, taken from the catalogue. For a specific code, the datasheet gives the exact figure.
Photometry
| Efficacy | 90 · 100 lm/W (±5%) |
|---|---|
| Colour temperature | |
| |
| Colour rendering | Ra > 82 |
Electrical
| Power | 12 – 72 W |
|---|---|
| Input voltage | 220 – 240 V · 50/60 Hz |
| LED chip | Everlight 2835 |
| Driver | ON-OFF / 1-10V / DALI / Color Changing · ON-OFF / DALI / 0-10V / Color Changing |
Construction
| Body | Aluminium |
|---|---|
| Lengths | 570 to 2.250 mm · 5 catalogue sizes |
| Diffusers and optics | |
| Finishes | |
Colour is indicative on screen. To specify, ask for the physical sample. | |
Installation and life
| Warranty | 5 years |
|---|---|
| Ingress protection | IP20 |
One code, one exact product
Every attribute that defines a variant, in a fixed order of 15 positions. No ambiguity in quotes, purchase orders or specifications.
- CMX 01
- XT 02
- X 03
- D60 04
- 570 05
- T5 06
- 220240 07
- 8 08
- 30 09
- X 10
- X 11
- X 12
- X 13
- S 14
- 12 15
See the full map of the code
- 01 CMX Brand Cromatix
- 02 XT Series XTube
- 03 X Model X
- 04 D60 Profile D60 mm
- 05 570 Size 570 mm
- 06 T5 Chip Everlight 2835
- 07 220240 Voltage 220-240 V
- 08 8 CRI Ra ≥ 80
- 09 30 CCT 3000 K
- 10 X Diffuser Not applicable
- 11 X Mounting Not applicable
- 12 X Control Not at this level
- 13 X Variant No variant
- 14 S Finish Silver
- 15 12 Power 12 W
X means the position does not apply or there is no data: the code always keeps its 15 positions so it stays machine-parseable. Colour temperature is the first two digits of the Kelvin value, and power carries no leading zeros.
Representative configurations
Real catalogue codes, chosen to cover the range of the series: three lengths of the profile with most codes, plus dual emission, the lens and the emergency kit. Flux is power times efficacy from the catalogue itself; where efficacy is a range it is left blank.
| MODEL_CODE | Model | Dimensions | Power | Flux | Efficacy | CRI |
|---|---|---|---|---|---|---|
| CMX-XT-X-D80-570-T5-220240-8-30-X-X-X-X-S-18 | T80 | 570 × D80 mm | 18W | 1.620 lm | 90lm/W | > 82 |
| CMX-XT-X-D80-1410-T5-220240-8-30-X-X-X-X-S-45 | T80 | 1410 × D80 mm | 45W | 4.050 lm | 90lm/W | > 82 |
| CMX-XT-X-D80-2250-T5-220240-8-30-X-X-X-X-S-72 | T80 | 2250 × D80 mm | 72W | 6.480 lm | 90lm/W | > 82 |
| CMX-XT-X-D60-570-T5-220240-8-30-X-X-X-X-S-12 | T60 | 570 × D60 mm | 12W(Down) | 1.200 lm | 100lm/W | > 82 |
| CMX-XT-X-D120-570-T5-220240-8-30-X-X-X-X-S-18 | T120 | 570 × D120 mm | 18W | 1.620 lm | 90lm/W | > 82 |
Photometry and documentation
Photometry is a measurement, not a description: an IES or LDT file corresponds to one physical configuration and changes with length, optic, diffuser and colour temperature.
That is why we do not publish a single series-wide file. Tell us which configuration you are evaluating and we will send the right one, together with the datasheet for that code.
